RX-N circuit breaker
1+N circuit breaker up to 32 A, breaking capacity 6 kA
- Rated currents
- 4; 6; 10; 13; 16; 20; 25; 32 A
- Number of poles
- 1 (1+N)
- Breaking capacity
- EN 60898 – 6 kA
Description
RX-N current-limiting circuit breakers are intended for final circuits in systems with an earthed neutral, protected by earthing (TT system) or by connection to a separate protective conductor (TN-S system).
RX-N current-limiting circuit breakers have two different releases acting on the switching mechanism:
- a time-delayed thermal release for overload protection,
- an electromagnetic instantaneous release with a plunger (striker) for short-circuit protection.
They are designed to protect electrical wiring and equipment against overload and short circuit, and are suitable for standard installation in distribution boards and switchboards.
In design and technical parameters, RX-N circuit breakers are on a par with the best products available worldwide. They bear the mark and are manufactured to ČSN EN 60 898.

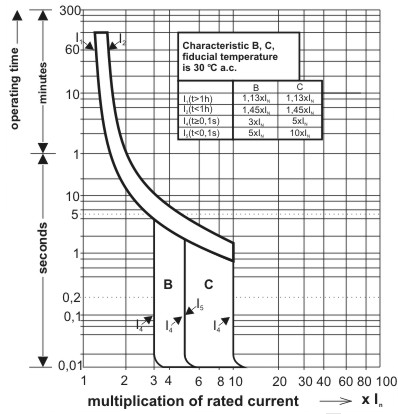

I1, I2: overload protection (thermal release)
I4, I5: short-circuit protection (electromagnetic release)
Typical applications of the tripping curves:
- B – for protection of cables and wiring
- C – for general-purpose loads
Technical data
| Number of poles | 1 (1+N) |
|---|---|
| Rated currents | 4; 6; 10; 13; 16; 20; 25; 32 A |
| Rated voltage | 1P 230/400 V 50/60 Hz |
| Breaking capacity | EN 60898 – 6 kA |
| Tripping characteristic | B: 3 In to 5 In C: 5 In to 10 In |
| Energy limiting class | 3 |
| Degree of protection | IP 20 |
| Max. conductor cross-section | In 32 A: 16 mm2 |
| Mounting | DIN rail EN 50 022, or screw fixing |
| Endurance | ≥ 10,000 operating cycles |
Characteristics and dimensions
